| Input SAT+TERR | 4+1 |
| Max. Output Level | Satelitte (IMA3) 102 dBmikroV |
| RF Connectors | F Connectors 75 ohm |
| DiSEqC | 2.0 -2.1 soltwore |
| DVB - T & DVB - C - HDTV | yes |
| Subscriber Output Lock Facillity | yes |
| Frequency Range TERR | 47- 870 MHz |
| Frequency Range SAT | 950 - 2150 MHz |
| SMPS Power Supply | 220 V / 18 Vdc/ 2000 m |
| Max. Current Consumption | 450 mA |
| lsolation SAT Subscriber-Subscriber | > 34 dB |
| lsolation SAT-SAT | > 33 dB |
| lsolation SAT-TERR | > 37 dB |
| lsolation H/V | > 33 dB |
| Number of Subscriber Outputs | 32 |
| Number of Cascade Outputs | 4+1 |
| Side Gain TERR | + 7 dB±2 |
| Side Gain SAT | + 0 dB±1 |
| Cascade Output Terr | - 5 dB±1 |
| Cascade Output Sat | - 5 dB±2 |
| Dimensions | 320x130x45mm |
| Weight | 723Gr. |

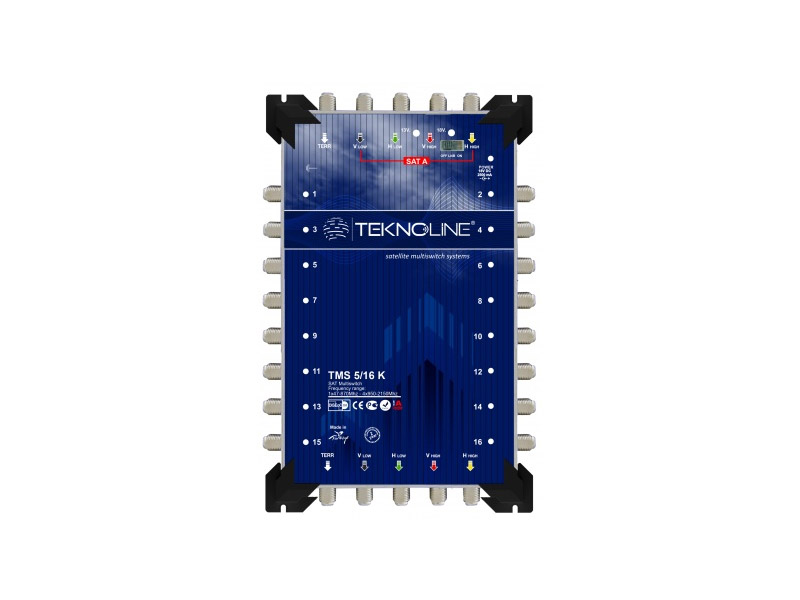

[TMS 5/16 K] 5 SERIES MULTISWITCH
- High insulated from each individual subscriber outlets
- With more gains in subscriber outlet to work in low signal
- Quad & Quattro LNB feature
- Subscriber port protection 100 volts
- 100m distribution length per subscriber
- Led subscriber control system
- Port locking feature
- More loss at high frequencies for each Subscriber output of +4 dB equalizer link
- 1 dB gain difference between the first and last subscribers
- Circuit 13-18V 22kHz
